Compact body structure of the new development and capacity 2,500 kg/h

  • Water to Steam in 5 minutes.
  • Fuel: Diesel oil, Heavy oil-A
  • Equivalent evaporation: 2,500 kg / h
  • Maximum operating pressure: 0.98MPa [G]
  • Boiler efficiency: 95% 96%

Functions and features

  • Four position combustion control boiler life and operating efficiency improved by leaps and bounds
  • Low noise and eco-friendly
  • High efficiency boiler
  • Good quality steam high dryness
  • Space-saving compact case
  • Fuel and electricity bill significant savings
  • Continuous blow equipment standard
  • Economizer standard
  • Function pursuit microcomputer control standard

Optional Specifications Related Products

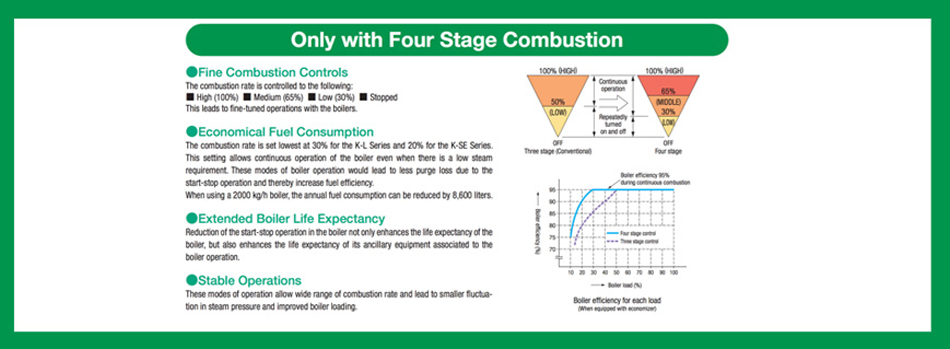

Only with Four Stage Combustion
  Fine Combustion Controls
The combustion rate is controlled to the following :
K-L Series :    High (100%)  Medium (65%)  Low(30%) Stopped
This leads to fine-tuned operations with boilers.
    Extended Bolier Life Expectancy
Reduction of the start-stop operation in the boiler not only enhances the life expectancy of the bolier, but also enhances the life expectancy of its ancillary equipment associated to the bolier operaion.

  Economical Fuel Consumption
The combustion rate is set lowest at 30% for the K-L Series and 20% for the K-SE Series. This setting allows continuous operation of the boiler even when there is a low steam eequirement. These modes of boiler poeration would lead to less purge due to the start-stop operation and thereby increasw fuel efficiency.
When using a 2000kg/h boiler, the annual fuel consumption can be reduced by 8,000 litters.

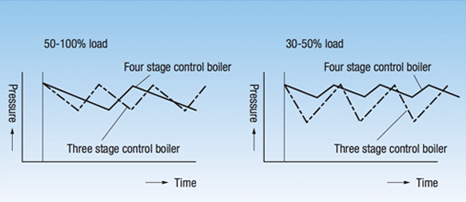

    Stable Operations
These modes of operation allow wide range of combustion rate and lead to smaller fluctuation in steam pressure and improved bolier loading.

Boiler Pressure control

This is an IHI patented technology, which controls the water level
for each boiler load. It prevents the overheating in the boiler tubes
and provides steam with a high degree of dryness.

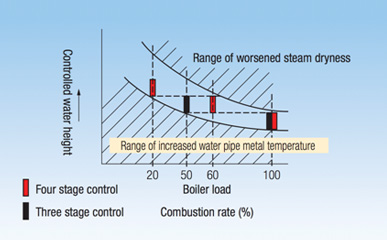

Boiler Water Level Controls (patented)

This is an IHI patented technology, which controls the water level for
each boiler load. It prevents the overheating in the boiler tubes and
provides steam with a high degree of dryness.

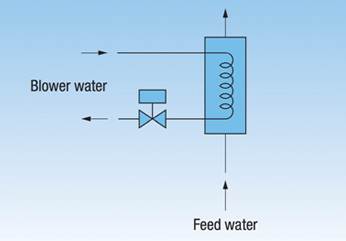

Continuous Blowers

The continuous blowers are a part of the standard equipment in the boiler
system, which have a capacity starting from 1,600 kg/h or higher and serve
as a heat exchanger at 50 kW. The electromagnetic valve and feed water
pump are interconnected , thereby blowing is only performed when water
is supplied, which increases the heat absorption rate.

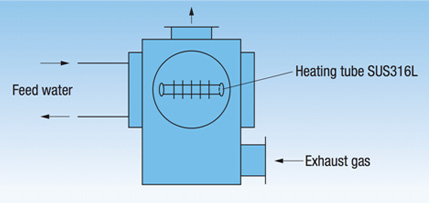

Economizer (Standard on the K-SE Series)

Economizers are sometimes installed to absorb heat from the exhaust gas.
The IHI economizer provides complete consideration towards corrosion
resistance, using materials such as SUS316L for the heating tubes.

Once Through Boiler
Gas Firing
K-3000SE
Equivalent evaporation:
3,000 kg/h
K-SE
Equivalent evaporation:
750 ~ 2,500 kg/h
K-L
Equivalent evaporation:
750 ~ 2,000 kg/h
K-LH
Equivalent evaporation:
1,600 ~ 2,000 kg/h
K-P
Equivalent evaporation:
120 ~ 300 kg/h
K-G
Equivalent evaporation:
500 kg/h
K-QE
Equivalent evaporation:
100 ~ 500 kg/h
Oil Firing
K-RE
Equivalent evaporation:
2,500 kg/h
K-L
Equivalent evaporation:
750 ~ 2,000 kg/h
K-LH
Equivalent evaporation:
1,600 ~ 2,000 kg/h
K-M
Equivalent evaporation:
100 ~ 500 kg/h
Medium & Large Size Boiler
KMH
Fire Tube Boiler
Equivalent evaporation:
1 ~ 15 Ton/h
SCM
Water Tube Boiler
Equivalent evaporation:
5 ~ 100 Ton/h
N-Series
Hot Water Generator
Waste heat boiler
Heat Management System
IBD-9100 SYSTEM
IBD-9000 Plus SYSTEM
